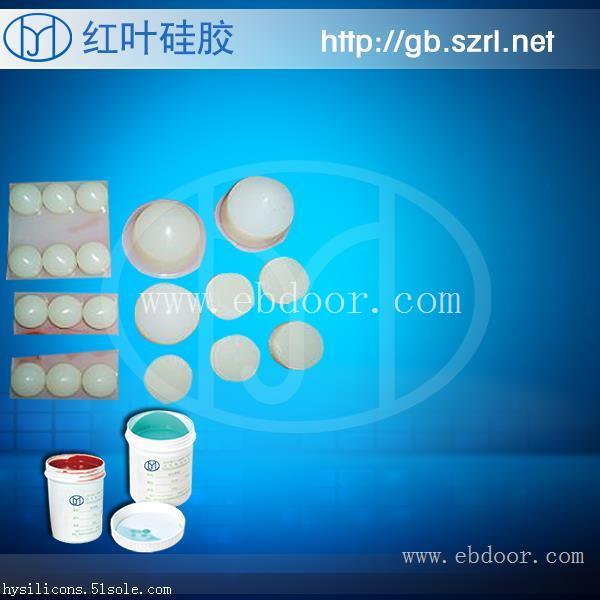

移印硅胶padprintingsiliconrubber(咨询热线：夏生）
移印硅胶 移印胶产品用途：
塑胶玩具、PVC玩具、工艺礼品、印刷用品、陶瓷产品的硅胶。
移印硅胶 移印胶商品描述：
移印胶头就是将钢板上的图案通过胶头做载体，再把钢板上的图案转印在玩具产品上。移印硅胶要求品质细腻，无杂质，回弹力好，上油好，图案印刷清晰。
移印硅胶的用途：
主要用于塑胶玩具电镀产品电子玩具商标通讯设备工艺礼品文具等不规则图案的印刷。
移印硅胶产品特色：
具有弹性好，不变形、耐高温、缩水率低等优点，主要用于手板模型设计开发及小批量复制产品。
移印硅胶常规产品参数
型号
外观
粘度(cps)
硬度(Ao)
拉伸强度（Mpa)
抗撕裂强度 (KN/m)
伸长率(%)
固化剂添加比(%)
操作时间(h)
固化时间(h)
901
红黄白绿
29000-34000
28±2
≥3.0
≥1.8
≥360
2～3
0.5
2～4
902
红黄白绿
29000-34000
28±2
≥3.2
≥2.2
≥380
2～3
0.5
2～4
912
红黄白绿
29000-35000
28±2
≥3.5
≥2.4
≥410
2～3
0.5
2～4
916
红黄白绿
29000-29000
20±2
≥3.5
≥2.4
≥420
2～3
0.5
2～4
918
红黄白绿
28000-34000
28±2
≥3.6
≥2.6
≥420
2～3
0.5
2～4
pad printing silicon
1. Wash and clean molds with detergents dry the molds and use an air gun if necessary and apply a film of mold release.
2. Determine the normal proportion of pad printing silicon and silicon oil on the basis of customer requirements. Add more silicon oils if a larger area of printed pattern and therefore soft rubber head is needed by the customer. Otherwise add no or less silicon oil for better hardness. For normal pad printing rubber head hardness between 15 A°--25A°will be appropriate. If excessive amount of silicon oil is added the number of printing will be limited by an extremely soft rubber head and the molecular weight of silicon of however supreme quality will be destroyed by silicon oil and therefore the phenomenon of compromised resistance to abrasion solvent and aging.
3. The normal proportion is as follows: 100g silicon admixed with 30g silicon oil for a hardness of 20 A° will be suitable for pad printing for alloy toy cars and products with small patterns and contact area. If larger pressure contact surface or soft rubber head is required the silicon and silicon oil proportion can be adjusted to 100:50 100:80 and so on. Remember the more silicon oil is added the softer the rubber head will be and the number of pad printing resistance to abrasion and solvent will be undermined and hence heightened cost and more material waste.
4. Admixture amount of curing agent and chemical reaction of silicon: e.g. mix 100g of silicon with 50g of silicon oil after they are sufficiently and evenly mixed add curing agent as per 2% of the total weight of silicon and silicon oil mix again for 2-3 minutes before exhausting. Generally exhausting duration can not exceed 10 minutes; otherwise the silicon will harden quickly to affect the quality of molding.
5. Admixture amount of curing agent and silicon reaction:
5.1． Added with 1% of curing agent silicon can still flow within 2.5 hours mold can be released in 6-8 hours.
5.2． Added with 2% of curing agent silicon can still flow within 50 minutes to 1 hour mold can be released in 2-3 hours.
5.3． Added with 3% of curing agent silicon can still flow within 28-30 minutes mold can be released in 1.5-2 hours
5.4． Added with 4% of curing agent silicon can still flow within 10-15 minutes mold can be released in 1-1.5 hours
5.5． Curing agent reaction rate is related with weather and temperature. Under 25 degree they can be added according to the instruction or at double amount in winter or under subzero temperature.
(Note: curing agent can not be added above the 4% maximum level and the normal proportion is 2%. If more than 4% is applied the silicon will condensate too fast for normal usage).
Above is the mixing data for silicon and curing agent the precise result of hundreds of times of our experiments. Provided that you arrange production according to our instruction you are sure to manufacture first class products and maximize your profit – this is not only the need of but also our responsibility for and a satisfactory answer to our customers. We may not be the first but we will try to be the best. The customers need is what we pursue !
